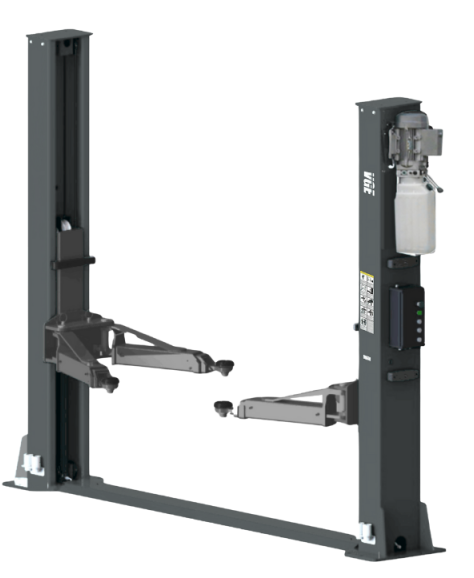

VGE-T50EX 5 TONNE, ELECTRIC RELEASE 2 POST LIFT
Choose the VGE-T50EX 2 Post Lift because it combines power, flexibility, safety and ease of use — making it ideal for professional garages, body shops and service centres that need a heavy-duty lift capable of handling a broad variety of vehicles. Its 5-tonne capacity, triple telescopic arms and adjustable pads give you the versatility to lift anything from compact cars to long-wheelbase vans, while twin hydraulic cylinders and synchronised lifting ensure smooth, stable, level lifts. Built-in safety features and electric lock release system deliver a modern, low-effort, compliant and safe operation. For daily workshop use, underbody work, tyre services or van servicing, this lift offers a robust, reliable and efficient solution — a long-term investment that improves workflow, safety, and vehicle handling.
• 5 Tonne twin hydraulic 2 post lift
• Low profile base plate not load bearing
• Triple telescopic arms for full access to jacking points
• Button operation for decent fully electric lowering system 24V circuit
• Synchronising cables as standard
• Top limit and safety switches fitted
• Full CE approval
• Heavy duty hydraulic pump unit
• Quality control box
• Low voltage operating system
• Hydraulic safety system in case of hydraulic hose burst
• Safety cut out breakers internal to control box
• Heavy duty arm configuration
• Post covers for health and safety
• Heavy duty arm locking mechanisms
• Adjustable lifting pads
• Height extensions as standard
• 3 Phase Upgrade available
Features & Benefits
- 5-tonne lifting capacity (5000 kg) — supports large cars, SUVs, long-wheelbase vans and many light commercial vehicles.
Benefit: One lift handles almost all typical workshop vehicles, reducing the need for multiple lifting systems. - Twin hydraulic cylinders with synchronising cables — ensures both columns rise and descend in perfect alignment.
Benefit: Smooth, stable and level lifting even under heavy load, preventing tilting and enhancing safety. - Triple-stage telescopic arms with adjustable lifting pads — includes standard 70 mm pads with optional 100 mm extensions.
Benefit: Easy access to correct jacking points for different vehicle types and chassis heights. - Fully electric lowering & lock-release (24V control) — push-button operation for lifting, lowering and lock release.
Benefit: Faster, more ergonomic workflow with no manual lock handles. - Comprehensive safety systems — top-limit switches, hose-burst protection, internal safety cut-outs, arm-locking mechanisms and protective post covers.
Benefit: High levels of operator and vehicle safety; reduces accident risk and maintains insurance compliance. - CE-approved heavy-duty construction — includes durable steel columns, reinforced arms and a premium hydraulic power unit.
Benefit: Long-lasting, workshop-grade reliability for daily operation. - Adjustable pad extensions — allows multiple lifting heights and better contact with varied vehicle chassis.
Benefit: Enhanced versatility for everything from small cars to commercial vans. - 12 Months Standard Warranty 24 Months Parts Warranty (subject to service plan)
| Lifting Capacity | 5000 kg (5 tonnes) |
| Maximum Lifting Height | 1930 mm |
| Operation Type | Electro-hydraulic with electric lock release & 24V control |
| Arm Configuration | Triple-stage telescopic arms with adjustable lifting pads (70 mm standard, 100 mm optional) |
| Safety Systems | Top-limit switch, hydraulic hose-burst protection, internal safety cut-outs, heavy-duty arm locks, protective post covers |
| Power Supply | 240 V (single-phase), optional 415 V three-phase upgrade |
| Construction | Heavy-duty steel columns, CE-approved build, high-quality hydraulic pump unit |
| Warranty | 24-month parts warranty (vendor terms apply) |
Frequently Asked Questions
With its 5000 kg lifting capacity and triple-stage telescopic arms with pad extensions, the VGE-T50EX can handle small cars, sedans, SUVs, large 4×4s, long-wheelbase vans, and many light commercial vehicles — as long as they fall within the rated capacity and jacking-point requirements.
The standard setup operates on a 240 V single-phase supply. A three-phase upgrade option is also available depending on your workshop’s electrical configuration and load requirements.
The VGE-T50EX includes hydraulic hose-burst protection, internal safety cut-out breakers, top-limit and safety switches, heavy-duty arm locking, protective post covers, and an automatic electric lowering lock release — ensuring safe and reliable operation.
