VGE-T60EX
6 Tonne Electric Release 2 Post Lift
Description
Features
Technical Data
cad Drawing
Description
6 Tonne Electric Release 2 Post Lift features an anti-explosive safety valve, electric lock release, and synchronization cables.
Features
- 6 Tonne Dual Hydraulic cylinders
- Electric lock release
- Clear floor
- Anti-explosion safety valve
- Syncronization cables
- Chain protector
- Easy access grease nipple design
- Suitable for Car, 4×4 & LCV
- 24 MONTHS WARRANTY*
Technical Data
| Lifting Capacity | 6000 Kg |
| Symmetric Arms | 930-1900mm F&R |
| Drive Through Width | 2,680mm |
| Overall Height | 4,500mm |
| Overall Width | 3,800mm |
| Lifting Height (Max) | 1,945mm |
| Pad Height (Min) | 110mm |
| Pad Height (Max) | 145mm |
| Motor Power | 220V / 50Hz / 1Ph / 3KW |

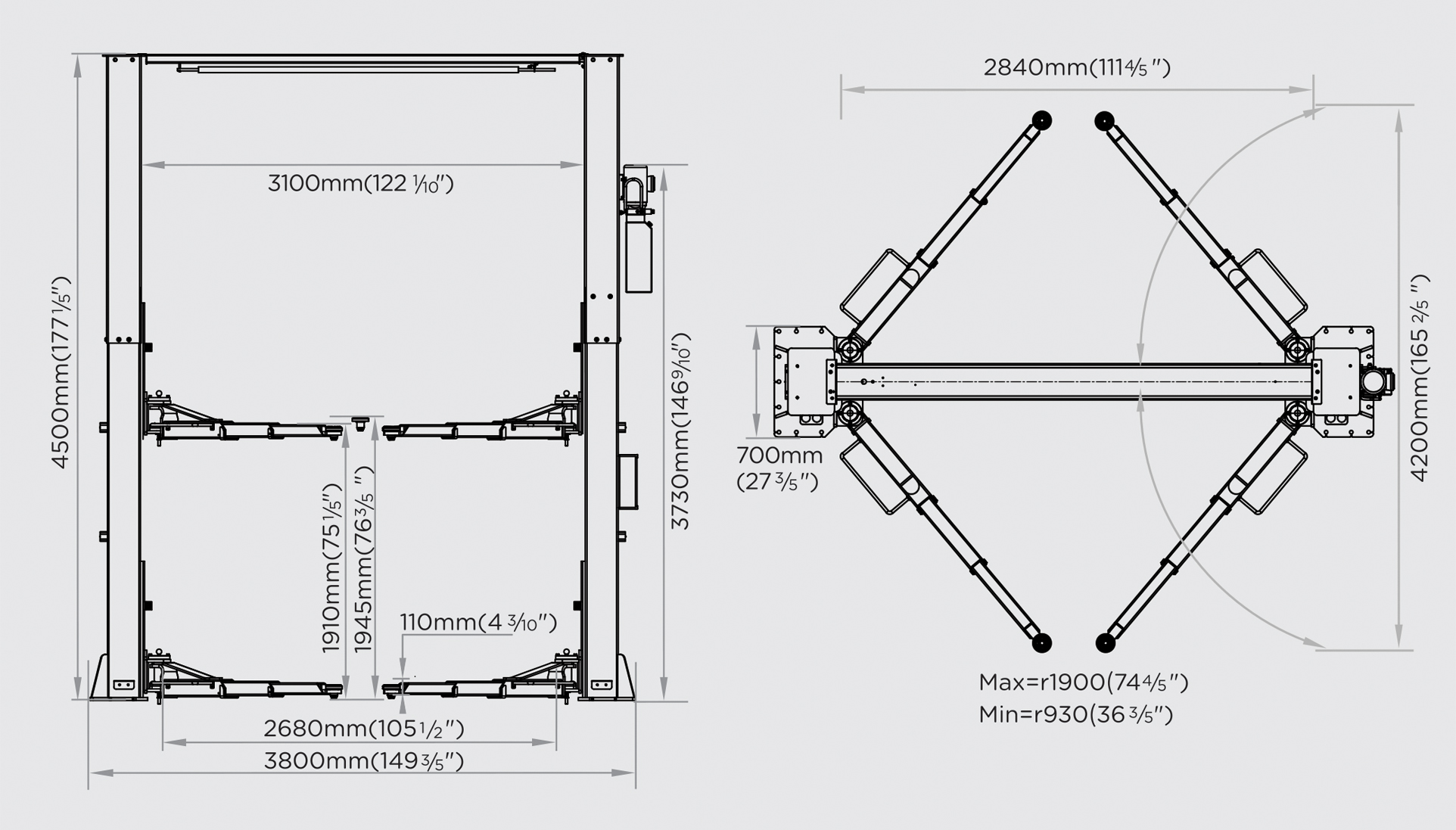

cad Drawing
