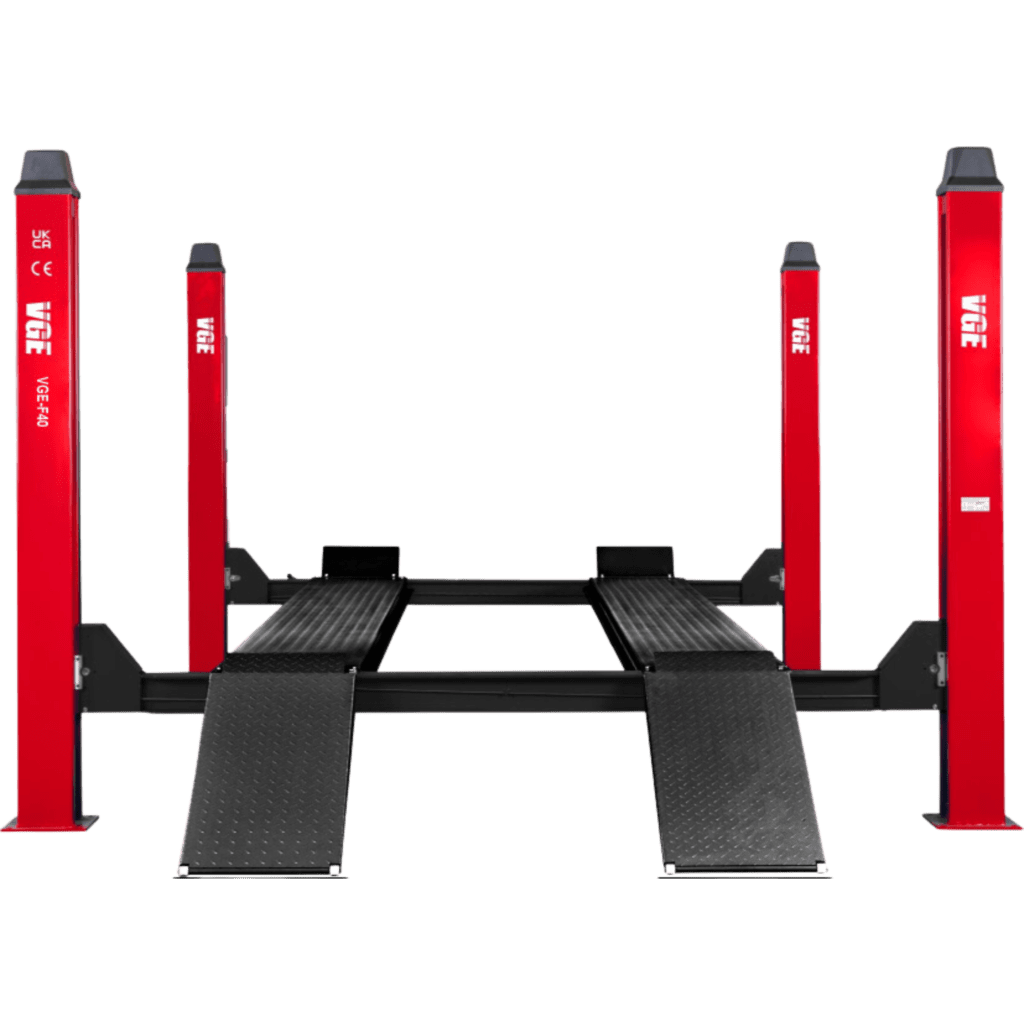

5 Tonne, 4 Post Service Lift - VGE-F50
Symmetric Lift
Description
Features
Technical Data
cad Drawing
Description
Features
- 5,000 KG CAPACITY
- MECHANICALLY OPERATED SAFETY LOCKS
- HYDRAULIC FAILURE SAFETY DEVICES
- MECHANICAL FAILURE SAFETY LOCKS
- FLOOR BOLTS INCLUDED
- FULLY C.E. APPROVED
- FULLY COMPLIANT WITH ALL UK AND EUROPEAN SAFETY REGULATIONS
- OUTSTANDING FINANCE OPTIONS AVAILABLE
- 24 MONTHS WARRANTY*
Technical Data
| LIFTING CAPACITY | 5,000 KG |
| PLATFORM LENGTH | 5,190 MM |
| OVERALL LENGTH (SURFACE MOUNTED) | 6,100 MM |
| DRIVE THROUGH WIDTH | 2,875 MM |
| PLATFORM WIDTH | 530 MM |
| OVERALL WIDTH | 3,435 MM |
| LIFTING HEIGHT (MAX) | 1,700 MM |
| DRIVE ON HEIGHT (MIN) | 205 MM |
| MOTOR POWER | 240V/415V 2.2KW |

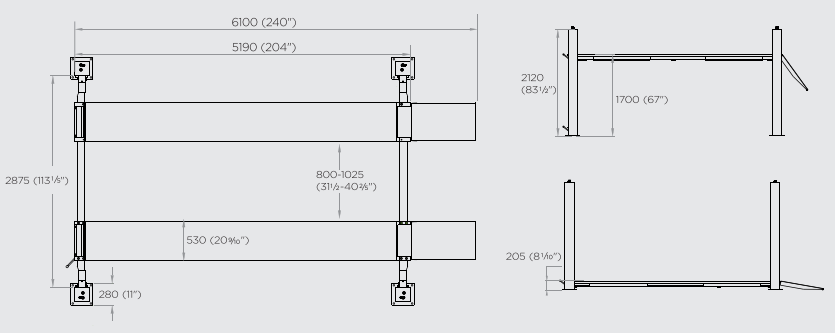

cad Drawing
