524SR – 524SRJC
Electro-hydraulic 4 post-lift
Description
Optionals
Technical Data
cad Drawing
Description
Art. 524SR

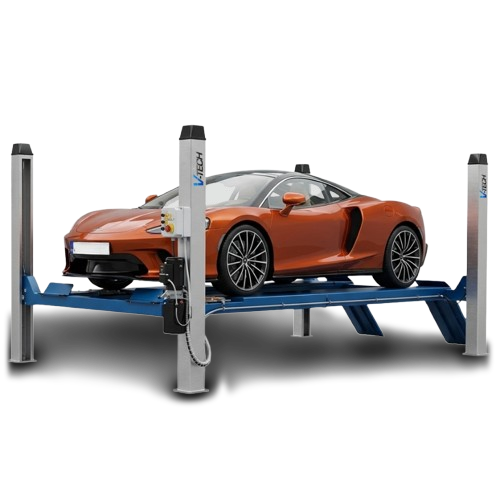

Electro-hydraulic 4 post-lift, extra-low, for wheel alignment with turn plates front recess, high speed lifting and lowering=
Art. 524SRJC
Electro-hydraulic 4 post-lift, extra-low, for wheel alignment with turn plates and play detector front recess, high speed lifting and lowering
- Safety device in case of rope breaking
- Overload safety-device
- Descent control valve
- Safety-valve in case of sudden loss of pressure
- “Dead man” controls 24V
- Electrical controlled fall safety
- Automatic descent control
- Soundproof safety devices
- Acoustic warning final descent phase
Optionals
OPTIONALS
V524.4
Turning plates with base (2 pieces) V524.5
Brake pedal device MOD. 524BLT cod. M9000482
Turn plates 547
Play detector
Technical Data
| TECHNICAL DATES | 524SR | 524SRJC |
| Capacity – t | 4 | 4 |
| Three-phase motor – kW | 2 | 3 |
| Voltage – V/Hz | 230-400/50 | 230-400/50 |
| Lifting – sec | 50 | 30 |
| Descent – sec | 45 | 30 |
| Weight – kg | 940 | 1050 |
The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
cad Drawing
