526C FOUR POST LIFT (5 TONNES)
Electro-hydraulic 4 post-lift
Description
Technical Data
Cad Drawing
Description
Art. 526C
Electro-hydraulic 4 post-lift
- Safety device in case of rope breaking
- Overload safety-device
- Descent control valve
- Safety-valve in case of sudden loss of pressure
- “Dead man” controls 24V
- Electrical controlled fall safety
- Automatic descent control
- Soundproof safety devices
- Acoustic warning final descent phase
Technical Data
| Capacity | t 5 |
| Three-phase motor | kw 2.2 |
| Voltage | V/Hz 230-400/50 |
| Lifting | sec 50 |
| Descent | sec 45 |
| Weight | kg 1270 |
The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

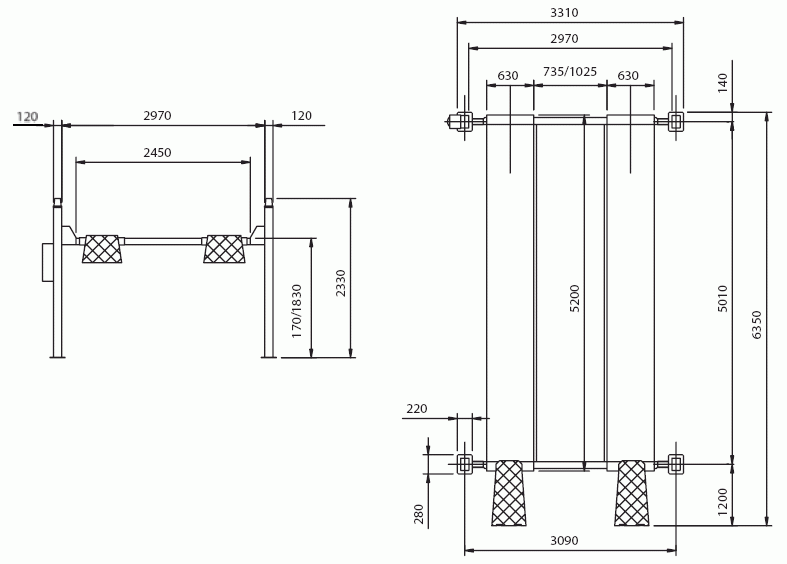

Cad Drawing
