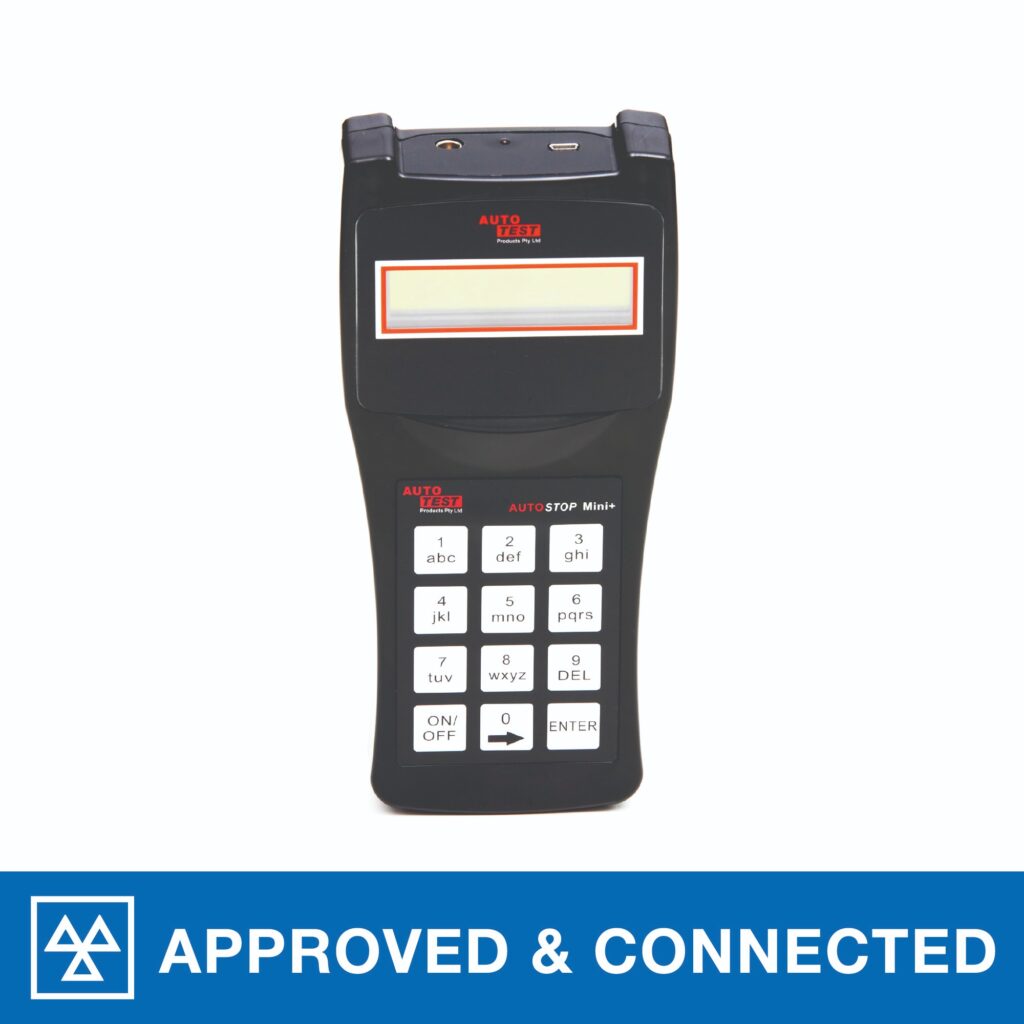

AutoTest AutoStop Mini Plus Decelerometer
Give your workshop a faster, more flexible way to verify braking performance with the AutoTest AutoStop Mini Plus. This compact, portable brake tester uses a multi-channel sensor to measure tri-axial deceleration, recording forward, sideways, and vertical movement, as well as stopping distance and lateral deviation. Because the unit self-aligns at the start of each test, it can be secured on the dashboard, centre console or passenger seat without time-consuming manual levelling. Simply switch it on, accelerate to the chosen test speed, brake to a standstill and review the results on the LCD display.
Designed for professional vehicle inspection facilities, fleet maintenance workshops and MOT test centres, the AutoStop Mini Plus also calculates MFDD in accordance with ECE R13. Its lightweight housing, automatic start, built-in integrity check and real-time clock make repeat testing straightforward, while storage for up to 200 records keeps busy jobs moving. USB-C and Bluetooth connectivity support convenient data handling, with optional PC download, graphing and remote printing. Suitable for motorcycles, light vehicles and trucks, it is a practical, accurate vehicle decelerometer for modern brake performance testing.
- Tri-axial brake measurement: Records forward, sideways and vertical deceleration, as well as stopping distance and lateral deviation within the lane.
- MFDD calculation: Calculates and displays Mean Fully Developed Deceleration in accordance with ECE R13.
- Self-aligning installation: Identifies its orientation at the start of each test, allowing secure installation on the dashboard, centre console or passenger seat.
- Compact, lightweight design: Measures 90 x 200 x 35 mm and weighs less than 500 g, with an adjustable 16-character LCD display.
- Automated operation: Includes automatic test start, a built-in integrity check, real-time clock and automatic switch-off after 15 minutes.
- Flexible data management: Stores up to 200 tests and includes USB-C and Bluetooth interfaces, with optional remote printing, PC graphing and motorbike mounting accessories.
- Complete tests quickly: The simple drive, brake and review process helps technicians obtain brake performance results without a lengthy setup procedure.
- Use one tester across multiple vehicle types: The portable decelerometer can be used with motorcycles, light vehicles and trucks, subject to the applicable local testing rules.
- Gain a fuller view of vehicle behaviour: Sideways and vertical measurements, stopping distance and lateral deviation provide more information than a basic straight-line deceleration reading.
- Reduce installation time: Self-alignment means the tester does not need to face one fixed direction, provided it remains securely mounted throughout the test.
- Maintain clearer test records: Storage for 200 results, a built-in clock and optional PC download and printing make it easier to retain, review and present brake test data.
- Test with greater confidence: Accelerometer accuracy of ±2%, a built-in integrity check and internationally traceable calibration support consistent professional testing.
Manufacturer: AutoTest Products Pty Ltd
Model: AutoStop Mini Plus Export Brake Meter
Product type: Portable vehicle brake performance tester and decelerometer
Measurement system: Multi-channel sensor measuring forward, sideways and vertical deceleration
Calculated results: MFDD, stopping distance and lateral deviation
Accelerometer accuracy: ±2%
Resolution: 0.01 g
Non-linearity: 0.2%
Transverse sensitivity: 2%
Display: 16 x 1 character LCD with adjustable display control
Dimensions: 90 x 200 x 35 mm
Weight : Less than 500 g
Power source: Lithium polymer battery
Operating time: More than 24 hours of running time
Power-saving function: Automatic switch-off after 15 minutes
Test memory: Up to 200 stored tests
Connectivity: USB-C and Bluetooth
Operating temperature: -5°C to 50°C
Operating humidity: 25% to 85% relative humidity, non-condensing
Calibration traceability: Internationally traceable through NATA
Vehicle applications: Motorcycles, Cars, light commercial vehicles and trucks
Optional equipment: Remote Bluetooth printer, rare-earth magnet motorbike kit, rubber suction-cup motorbike kit and PC download and graphing capability
